How humanness evaluation in AntPack works

Once antibodies have been numbered, they form fixed-length sequences as part of a multiple sequence alignment. The probability of any given sequence can be estimated using very simple generative models fitted to large antibody sequence datasets. This simple model is a distribution across sequence space that consists of M clusters, so we can use it to score sequences, generate new sequences that contain a desired motif, or suggest modifications to an existing sequence that would make it more similar to one of the clusters in the model.

Remarkably, when it comes to distinguishing human from nonhuman sequences, simple models in this case (e.g. our model or the k-mer based model in BioPhi) match or outperform more “sophisticated” models, e.g. currently available antibody LLMs and random forest classifiers. For some benchmarking of simple mixture models vs a variety of other options described in the literature, see Parkinson et al. 2024

The humanness scoring tool in AntPack doesn’t have to be used in conjunction with AntPack numbering, and AntPack numbering can be used independently of the scoring tool. The humanness scoring model was however trained using AntPack numbering so it’s probably easiest to use this in general.

When you score a sequence for humanness using AntPack, the library 1) numbers the sequence using IMGT numbering and 2) calculates the log-probability of this sequence given its original training set (60 million heavy chains and 70 million light). AntPack can then subtract the median scores from the training set so that heavy / light chain scores are on the same scale (or not, if you turn this setting off). Higher scores indicate a more human sequence.

It’s also possible to score the sequence while 1) masking CDR3, 2) excluding N- or C-terminal deletions, 3) excluding all gaps, or 4) masking a custom region you’d like to exclude. This way, if you want to see what the score looks like while excluding a deletion or if you just want to see the score for a specific region you can do that as well.

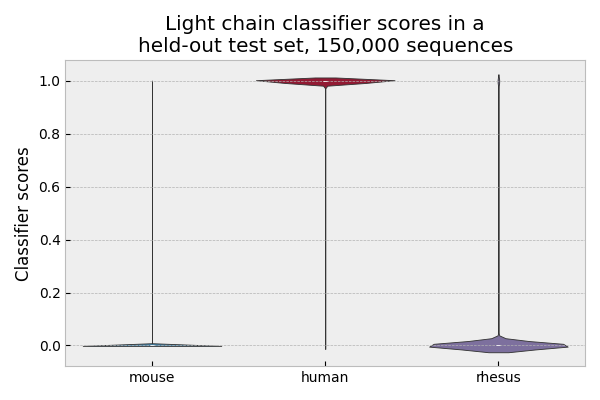

AntPack can be run in classifier mode, where it classifies a sequence as one of rhesus monkey, mouse, human or (for heavy chain) rat. On held-out test sets, this procedure achieves accuracy > 99.9%. See light chain below for example (heavy chain is similar):

However, we don’t recommend using AntPack in classifier mode because like other classifiers in the literature (e.g. Hu-mAb), it fails on sequences from species not included in the training set (e.g. rabbit, camel). Also, species classification is less granular since it doesn’t take into account greater similarities between sequences from some species (e.g. rhesus monkey vs human).

AntPack can humanize a sequence by suggesting modifications that can improve the score. Finally, you can use AntPack as a generative model to generate new human antibody sequences by retrieving the model cluster that’s most similar to a sequence of interest and then sampling from this model cluster.

What is a good humanness score? or, how human do I need to be?

Unfortunately there’s no fixed answer to this question, because immunogenicity is a complex phenomenon that is not a simple function of humanness. There are some sequences of mouse origin that are not immunogenic in humans, and some rare sequences of human origin that form ADA in some patients. However, the more human a sequence, the lower the risk of immunogenicity in general. Hence, we can say roughly what constitutes an acceptable humanness score based on the 400 million heavy and light sequences we used for initial testing.

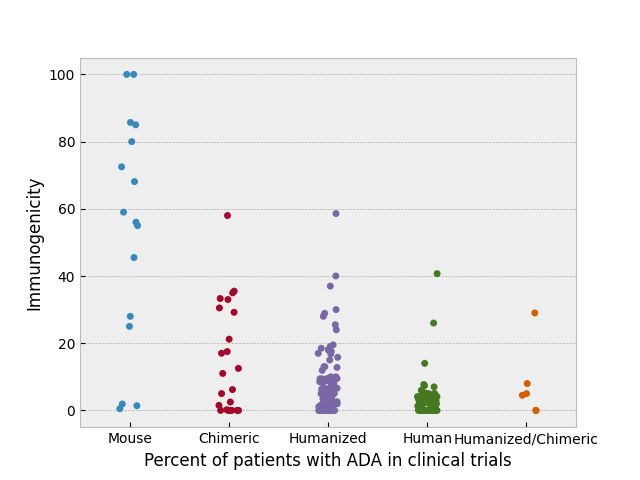

Here’s data from Marks et al. on the percentage of patients developing anti-drug antibodies (ADA) to 217 antibody drugs in clinical trials. The antibodies are grouped by species of origin (e.g. mouse antibody, humanized or chimeric mouse antibody, human antibody, etc.). It’s immediately apparent that human antibodies have the lowest risk of severe immunogenicity, followed by humanized antibodies, followed by chimeric, with mouse of course the worst of all.

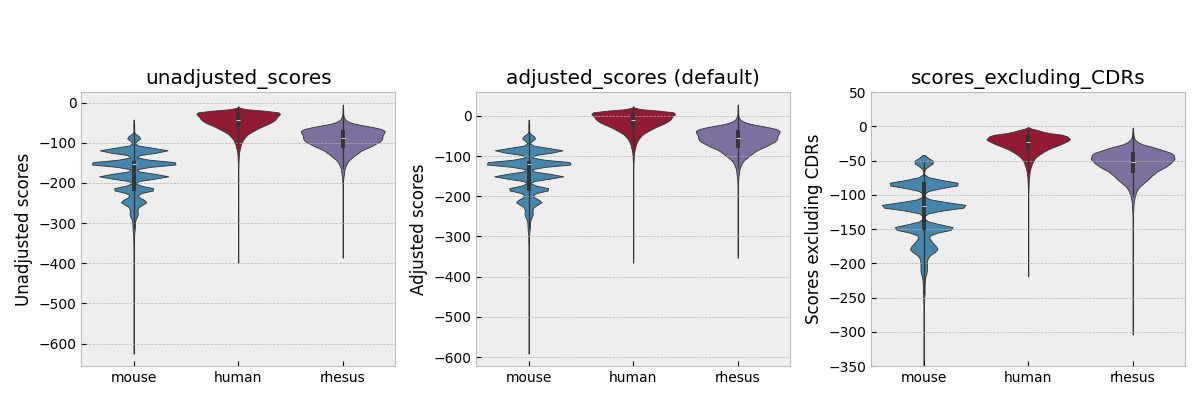

Here are the score distributions using AntPack for 450,000 held-out heavy and light sequences from various species of origin, using either adjusted score (the default), unadjusted score, or with CDRs excluded. Behavior on larger test sets is similar. You can use this as a rough guide to what’s “human” and what’s not. Rhesus monkeys are of course more similar to humans genetically and antibodies of rhesus monkey origin tend to score more highly. When scoring an antibody, we average over the heavy and light chain scores.

See Parkinson et al. 2024 to see what score distributions look like for specific sub-regions of heavy and light chains, or for more details on the distributions shown above.

Notice that heavy and light chain scores have different distributions, so that combining them to form a single score for a whole antibody by just averaging them can be problematic. If you want a single score for the whole antibody, it’s best to normalize the scores for the two chains and then average them. Likewise, if you’re just scoring specific regions (e.g. framework 1, CDR2 etc.) and want to compare scores across different regions, normalization can be useful.
